DS2200 ultra compact 레이져 산업용 스캐너

DS2200INFO
The DS2200 embedded bar code reader is an ultra-compact laser scanner with built-in decoder, 500scans/sec, reading distance from 50 to 220mm

FEATURES & BENEFITS
Compact dimensions
Excellent reading capabilities
Designed for OEM integration
Very high density code reading (up to 0,076mm/3mils)

APPLICATIONS
This product series has been developed to satisfy to requirements of the following reference applications:

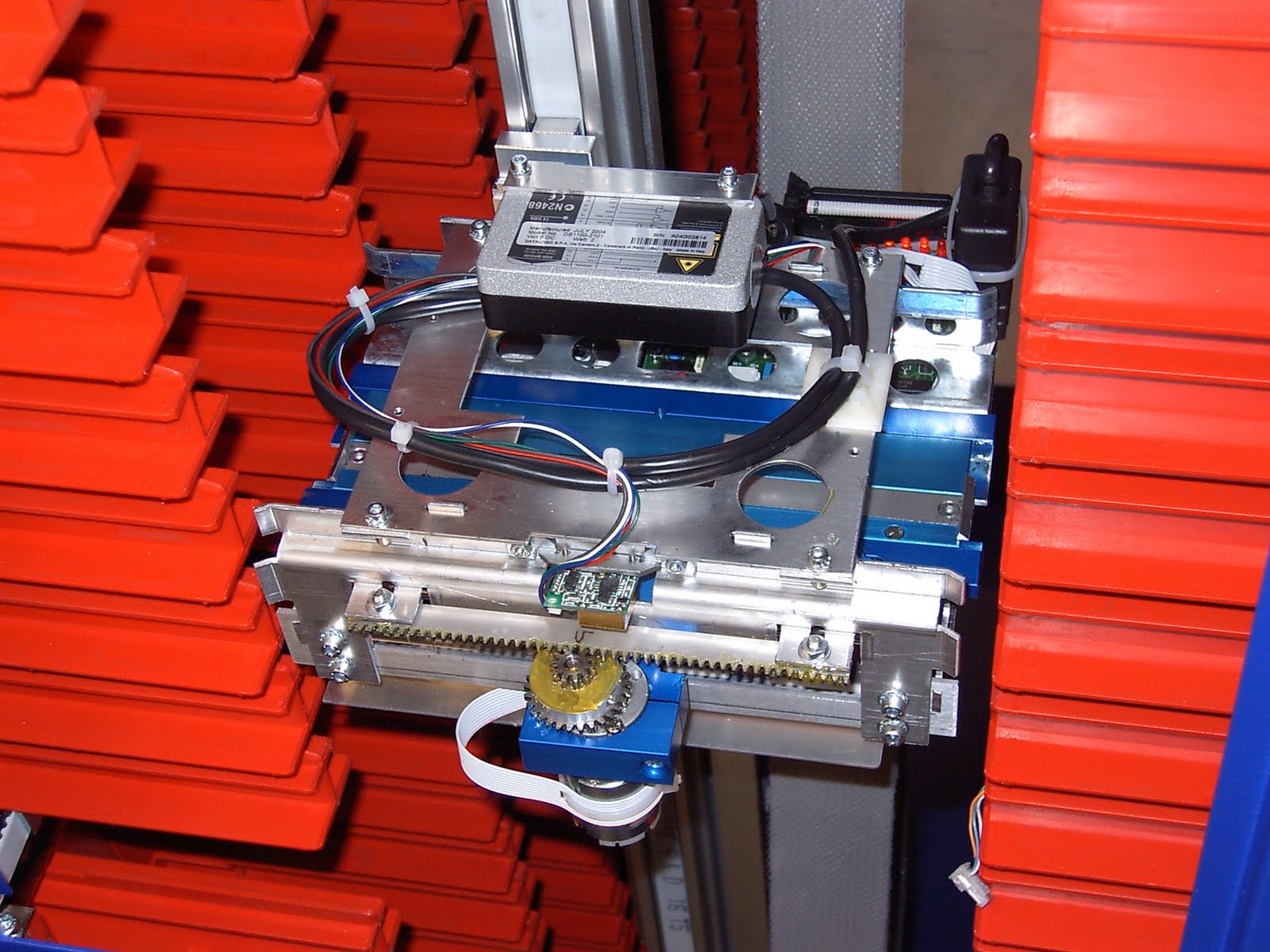

Packaging machines
Biomedical analysis machines
Document handling machines
Print & Apply systems
ATL (Automated Tape Libraries)

MODELS
The product series offers the following models:
Ordering Codes
Description
930161000
DS2200-1100 ST-RES, LIN, RS485+RS232, 5V
930161030
DS2200-1110 ST-RES, R1, RS485+RS232,5V
930161040
DS2200-2100 HI-RES, LIN, RS485+RS232, 5V
930161050
DS2200-2110 HI-RES, R1, RS485+RS232, 5V

ACCESSORIES
The following accessories are available to simplify installation and optimize product performances:
Ordering Codes
Description
93A051300
CAB-JB1 25P-JBOX1 SINGLE ADAPTER
93A201108
GFC-200 85°MIRROR CONTACT READING, NSC
93A201080
GFC-2000 105° READING DEV
93A201000
GFC-2100 90° READING DEV
93ACC1871
GFC-2020 2KN 102° LATERAL OUTPUT
93ACC1839
OM2000N OSCILLATING MIRROR, NSC


구매 및 AS안내
데이터로직한국총판
㈜기륭데이타정보 T(02)588-0808 www.krdata.co.kr

DS2400N 산업용 레이져 자동 고정식 스캐너

DS2400NINFO
The new DS2400N industrial laser bar code reader takes advantage of Datalogic Automation's successful experience in 1D bar code reading, satisfying the demanding application needs of the largest manufacturers worldwide. DS2400N provides greater profitability and productivity in the most common warehousing, shop floor and OEM applications.

FEATURES & BENEFITS
Straight and 90° output window
1초당 최대 1000 scan /sec
통신포트 2 input + 2 output
통신방식 RS232 + RS485 serial port
ID-NET™ 지원
X-PRESS™ 손쉬운 셋팅
10-30Vdc, IP65, 0-50°C
Genius platform
Typical reading range: 75 - 600mm

MODELS
The product series offers the following models:
Ordering Codes
Description
930181379
DS2400N-0200 SHORT RANGE, LINEAR, NSC
930181380
DS2400N-0210 SHORT RANGE, RASTER, NSC
930181381
DS2400N-1200 MEDIUM RANGE, LINEAR, NSC
930181382
DS2400N-1210 MEDIUM RANGE, RASTER, NSC
930181383
DS2400N-2200 LONG RANGE, LINEAR, NSC
930181384
DS2400N-2210 LONG RANGE, RASTER, NSC

ACCESSORIES
The following accessories are available to simplify installation and optimize product performances:
Ordering Codes
Description
93A051300
CAB-JB1 25P-JBOX1 SINGLE ADAPTER
93A201108
GFC-200 85° MIRROR CONTACT READING, NSC
93A201080
GFC-2000 105° READING DEV
93A201000
GFC-2100 90° READING DEV
93ACC1871
GFC-2020 2KN 102° LATERAL OUTPUT
93ACC1839
OM2000N OSCILLATING MIRROR, NSC

구매 및 AS안내
데이터로직한국총판
㈜기륭데이타정보 T(02)588-0808 www.krdata.co.kr

TC1100 Datalogic 고정식 스캐너

FEATURES & BENEFITS
고성능 CCD 고정식 스캐너
초당 270scan/sec
1 input + 1 output
RS232 serial port
5Vdc
Typical reading range: 50-200mm

APPLICATIONS
This product series has been developed to satisfy to requirements of the following reference applications:
Access control systems
Chemical and biomedical analysis machines
Automatic Tape Libraries (ATL)
Self service systems (ATM, kiosk)
Game automation (Lotto, Lottery, etc.)
Film processing machines

MODELS
The product series offers the following models:
Ordering Codes
Description

939501000

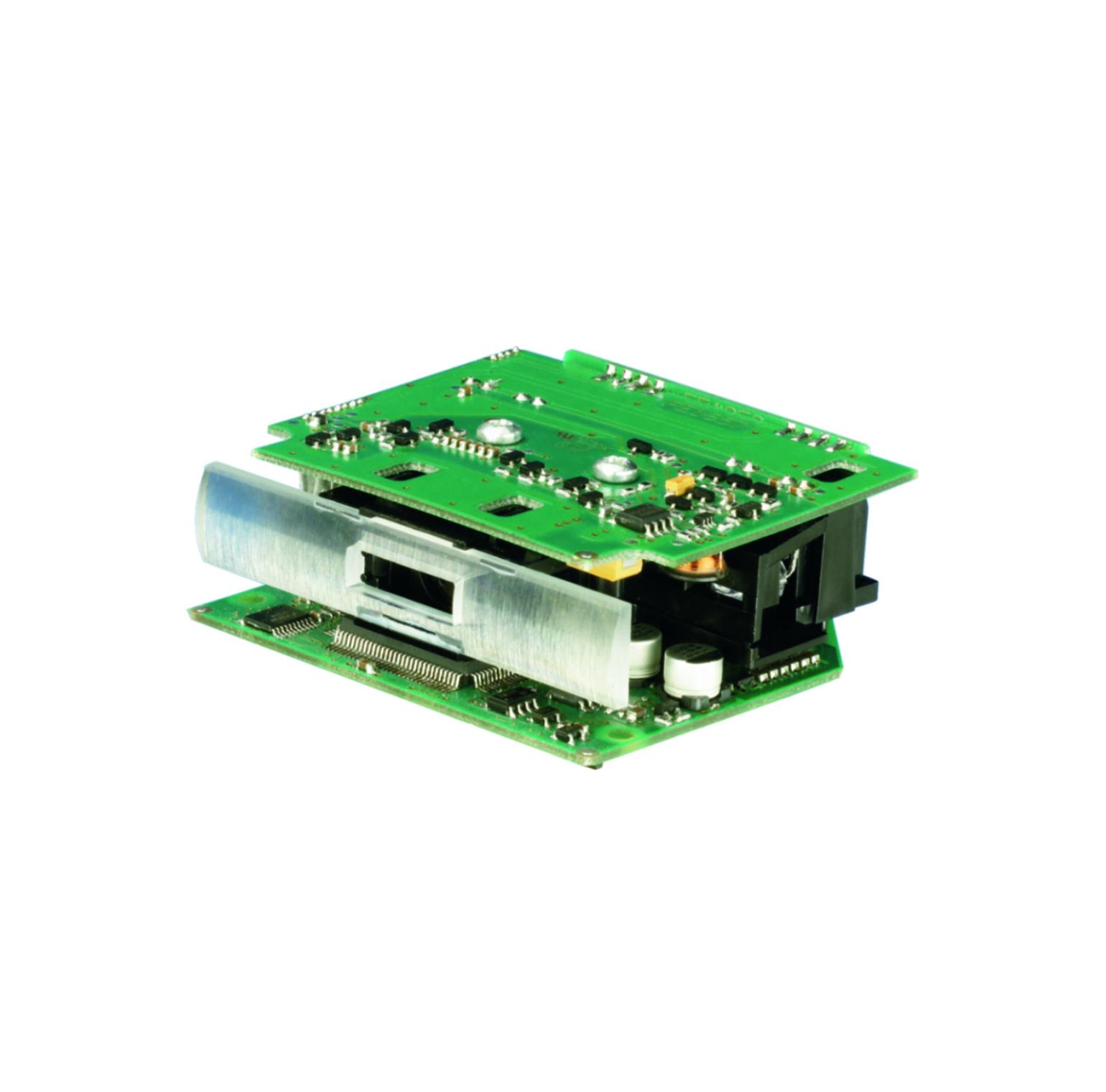

TC1100-0100 CCD ENGINE LINEAR

939501020
TC1100-1100 CCD SCANNER, DIR, LINEAR


ACCESSORIES
The following accessories are available to simplify installation and optimize product performances:
Ordering Codes
Description
93A201101
GFC-TC1100 80° DEG.MIRROR
93ACC1670
TC1100 REFERENCE MANUAL+CONFIGURATOR SW


구매 및 AS안내
데이터로직한국총판 ㈜기륭데이타정보 T(02)588-0808 www.krdata.co.kr

2차원 2D 바코드스캐너 D432plus / D432E

Features

Omnidirectional reading

Advanced ‘motion tolerance’ optics

Datalogic’s patented ‘Green Spot’ for good-read feedback and instinctive 5-dot aimer

Supports 1D, 2D and postal codes plus stacked and composite codes like PDF417 and GS1 DataBar™

Image Capture

Drop resistance to 1.8 m / 5.9 ft

Decoding Capability
• 1D / Linear Codes
o Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• 2D Codes
o Aztec Code
o Data Matrix
o MaxiCode
o QR Code
• Postal Codes
o Australian Post
o China Post
o Japanese Post
o KIX Post
o Korea Post
o Planet Code
o Postnet
o Royal Mail Code (RM4SCC)
• Stacked Codes
o EAN/JAN Composites
o GS1 DataBar Composites
o GS1 DataBar Expanded Stacked
o GS1 DataBar Stacked
o GS1 DataBar Stacked Omnidirectional
o MacroPDF
o MicroPDF417
o PDF417
o UPC A/E Composites
Electrical
• Current
o Operating (Typical)
 245 mA @ 5 VDC
o Standby/Idle (Typical)
 120 mA @ 5 VDC
• Input Voltage
o IBM Interface
4.75 - 24 VDC
o Standard Model
4.75 - 5.25 VDC
Environmental
• Ambient Light
o 0 - 100,000 lux
• Drop Resistance
o Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
• ESD Protection (Air Discharge)
o 16 kV
• Humidity (Non-Condensing)
o 0 - 95%
• Particulate and Water Sealing
o IP50
• Temperature
o Operating
 0 to 50 °C / 32 to 122 °F
o Storage/Transport
 -20 to 70 °C / -4 to 158 °F
Interfaces
• IBM 46xx
• Keyboard Wedge
• RS-232
• USB
• Wand
Physical Characteristics
• Colors Available
o Dark Grey
o White
• Dimensions
o 17.9 x 8.1 x 9.8 cm / 7.0 x 3.2 x 3.9 in
• Weight
o 198.0 g / 7.0 oz
Reading Performance
• Image Capture
o Wide VGA
752 x 480 pixels
o Graphic Formats
 BMP, JPEG, TIFF
 Greyscale: 256, 16, 2
• Imager Sensor
o 2D CMOS Array
752 x 480 pixels
• Light Source
o Aiming
 630 - 670 nm VLD
• Print Contrast Ratio (Minimum)
o 23%
• Reading Angle
o Pitch
 +/- 35°
o Roll (Tilt)
 360°
o Skew (Yaw)
 +/- 40°
• Reading Indicators
o Beeper (Adjustable Tone)
o Datalogic 'Green Spot' Good Read Feedback
o Good Read LED
• Resolution (Maximum)
o Data Matrix
0.168 mm / 6.6 mils
o Linear
0.100 mm / 4 mils
Reading Ranges - Typical Depth of Field
• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• 10 mil Data Matrix
o 1.5 to 14.0 cm / 0.6 to 5.5 in
• 10 mil PDF
o 0.5 to 22.0 cm / 0.2 to 8.6 in
• EAN13 - 13 mils
o 1.5 to 22.0 cm / 0.6 to 8.6 in
Safety & Regulatory
• Agency Approvals
o The product meets necessary safety and regulatory approvals for its intended use.
o The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
o Complies to China RoHS
o Complies to EU RoHS
• Laser Classification
o CDRH Class II
o IEC 60825 Class 2
• LED Classification
o IEC 60825 Class 1 LED
Utilities
• Datalogic Aladdin™
o Datalogic Aladdin configuration program is available for download at no charge



ORDER & AS CENTER
KDI CO.,LTD (주)기륭데이타정보
T.(02)588 0808 F.(02)3481 0266

무선바코드스캐너 GM4100 / Gryphon M4100

Gryphon™ I GM4100
Features
Fastest speed-to-read: 325 reads/second
Radio frequencies available in 433 MHz or 910 MHz
Radio Range (open air) up to 30.0 m / 98.4 ft for 433 MHz, up to 15.0 m / 49.2 ft for 910 MHz
Optional display with 3-Key keypad
Point-to-point and multi-point transmission
Datalogic's patented 2-position cradle with Scan-While-Charging capability
Batch Mode capability (>1200 codes stored in memory)
Drop resistance to 1.8 m / 5.9 ft
Datalogic’s patented ‘Green Spot’ for good-read feedback
Long lasting user-replaceable Lithium-Ion battery
Optional Counterfeit Detection
USB Certified Kits Available

Cordless Communications
• Datalogic STAR Cordless System™
o Effective Radiated Power
 433.92 MHz
< 10 mW
 910 MHz
< 1 mW
o Multi-Point Configuration
 Max. Readers in Same Area
 2048
 Max. Readers per Radio Receiver
 16
o Point-to-Point Configuration
o Radio Frequency
 433.92 MHz
 910 MHz
o Radio Range (Open Air)
 433.92 MHz
30.0 m / 98.4 ft
 910 MHz
15.0 m / 49.2 ft
o Seamless Roaming
 False
o Two Way Communications
Decoding Capability
• 1D / Linear Codes
o Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• Postal Codes
o China Post
• Stacked Codes
o GS1 DataBar Expanded Stacked
o GS1 DataBar Stacked
o GS1 DataBar Stacked Omnidirectional
Electrical
• Battery
o Battery Type
 Lithium-Ion, 2100 mAh
o Charge Time
 External Power
 4 Hours
o Reads per Charge
 50,000
• Cradle Indicator LEDs
o Battery Charging (Red)
o Charge Completed (Green)
o Power/Data (Yellow)
• Current
o Charging (Typical)
 < 8 W
o Operating (Typical)
 < 2.5 W @ 5 VDC
o Standby/Idle (Typical)
 < 2.5 mA @ 5 VDC
• Input Voltage
o 4.75 - 14 VDC +/- 5%
Environmental
• Ambient Light
o 100,000 lux
• Drop Resistance
o Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
• ESD Protection (Air Discharge)
o 16 kV
• Humidity (Non-Condensing)
o 5 - 95%
• Particulate and Water Sealing
o IP52
• Temperature
o Operating
 0 to 50 °C / 32 to 122 °F
o Storage/Transport
 -20 to 70 °C / -4 to 158 °F
Interfaces
• RS-232 / IBM 46XX / USB Multi-Interface
• RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Optional Features
• Counterfeit Detection
o BC4010-BK-910-CF; BC4010-BK-433-CF
o Field of View
 20º
o Input Current (Maximum)
 25 mA
o Optical Power
 19-26 mW @ 20 mA
o UV LEDs
 8
Physical Characteristics
• Colors Available
o Black
o White
• Dimensions
o Cradle
18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
o Reader
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
• Display
o Display Type
 GM4100-D Only
Graphic with backlight
o Font Dimensions
 User selectable (4 lines x 16 columns default)
o Screen Dimensions
 32 x 96 pixels
• Keypad
o GM4100-D Only
3-Key Keypad
• Weight
o Cradle
246.0 g / 8.7 oz
o Reader (with Display)
246.0 g / 8.7 oz
Reading Performance
• Light Source
o Illumination
 LED Array 630 - 670 nm
• Print Contrast Ratio (Minimum)
o 15%
• Read Rate (Maximum)
o 325 reads/sec.
• Reading Angle
o Pitch
 +/- 65°
o Roll (Tilt)
 +/- 35°
o Skew (Yaw)
 +/- 65°
• Reading Indicators
o Beeper (Adjustable Tone and Volume)
o Datalogic 'Green Spot' Good Read Feedback
o Good Read LED
• Resolution (Maximum)
o 0.076 mm / 3 mils
Reading Ranges - Typical Depth of Field
• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• 5 mils
o 6.0 to 18.0 cm / 2.3 to 7.0 in
• 7.5 mils
o 3.5 to 30.0 cm / 1.4 to 11.7 in
• 10 mils
o 2.0 to 45.0 cm / 0.8 to 17.7 in
• 13 mils
o 3.0 to 60.0 cm / 1.2 to 23.4 in
• 20 mils
o 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
• Agency Approvals
o The product meets necessary safety and regulatory approvals for its intended use.
o The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
o Complies to China RoHS
o Complies to EU RoHS
• LED Classification
o IEC 60825-1 Class 1 LED Product
Utilities
• Datalogic Aladdin™
o Datalogic Aladdin configuration program is available for download at no charge
• OPOS / JavaPOS
o OPOS Utilities are available for download at no charge
• Remote Host Download
o Lowers service costs and improves operations
 BC4010

ORDER & AS CENTER
KDI CO.,LTD (주)기륭데이타정보
T.(02)588 0808 F.(02)3481 0266

PM8500 PowerScan M8500 2차원 무선 바코드스캐너

Features

Optics available in Standard Range, High Density and Wide Angle

Datalogic 3GL™ (3 Green Lights) and loud beeper for good read feedback

Datalogic’s instinctive 5-dot aimer

Omnidirectional reading from contact to 30.0 cm / 11.8 in

Optional model available with display and 3-key keypad

100% Compatible with Datalogic’s STAR Cordless System™

Point-to-point and multi-point transmission

Seamless roaming

User replaceable Lithium-Ion battery

Operates over a wide range of temperatures

Water and particulate sealing rating: IP65 (without display) / IP64 (with display)

Drop resistance to 2.0 m / 6.5 ft

Cordless Communications
Datalogic STAR Cordless System™
Effective Radiated Power
433.92 MHz
< 10 mW
910 MHz
< 1 mW
Multi-Point Configuration
Max. Readers in Same Area
2000
Max. Readers per Radio Receiver
32
Point-to-Point Configuration
Radio Frequency
433.92 MHz
910 MHz
Radio Range (Open Air)
433.92 MHz
Up to 50 m / 164 ft
910 MHz
Up to 30 m / 98 ft
Seamless Roaming
Two Way Communications
Decoding Capability
1D / Linear Codes
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes
Aztec Code
Aztec Mesas
Data Matrix
MaxiCode
QR Code
Postal Codes
Australian Post
British Post
Canadian Post
China Post
Japanese Post
KIX Post
Korea Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)
Stacked Codes
EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites
Electrical
Battery
Battery Type
Li-ION 2150 mAh
Charge Time
External Power
4 Hours
Host Power
10 hours
Reads per Charge
+ 30,000
Cradle Indicator LEDs
Battery Charging (Red)
Charge Completed (Green)
Power/Data (Yellow)
Current
Operating (Typical)
External
1 A @ 10 VDC, 330 mA @ 30 VDC
POT
500 mA
Input Voltage
External
10 - 30 VDC
POT
5 VDC +/- 5%
Environmental
Ambient Light
0 - 100,000 lux
Drop Resistance
Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
ESD Protection (Air Discharge)
20 kV
Humidity (Non-Condensing)
0 - 95%
Particulate and Water Sealing
PM8500
IP65
PM8500-D
IP64
Temperature
Operating
-10 to 50 °C / 14 to 122 °F
Storage/Transport
-40 to 70 °C / -40 to 158 °F
Interfaces
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
RS-485
BC8060 Only
Physical Characteristics
Colors Available
Yellow/Black
Dimensions
Cradle
24.0 x 10.8 x 9.5 cm / 9.5 x 4.3 x 3.7 in
PM8500
20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in
PM8500-D
21.0 x 11.4 x 6.9 cm / 8.3 x 4.5 x 2.7 in
Display
PM8500-D
Display Type
Graphic with backlight
Font Dimensions
User selectable (4 lines x 16 columns default)
Screen Dimensions
32 x 96 pixels
Keypad
PM8500-D Only
3-Key Keypad
Weight
Cradle
380.0 g / 13.4 oz
PM8500
360.0 g / 12.7 oz
PM8500-D
393.0 g / 13.8 oz
Reading Performance
Imager Sensor
1280 x 1024
Light Source
Aiming
630 - 680 nm VLD
Illumination
LED Array 630 - 670 nm
Print Contrast Ratio (Minimum)
15%
Reading Angle
Pitch
+/- 35°
Roll (Tilt)
360°
Skew (Yaw)
+/- 40°
Reading Indicators
Beepers, Polyphonic
Datalogic Three Green Lights (3GL™) Good Read Feedback
Datalogic 'Green Spot' on the Code
Dual Good Read LEDs
Good Transmission
Resolution (Maximum)
High Density Model
1D Codes: 2 mil, PDF417: 3 mil, 2D Codes: 4 mil
Standard Model
1D Codes: 4 mil, PDF417: 4 mil, 2D Codes: 6.6 mil
Wide Angle Model
1D Codes: 5 mil, PDF417: 5 mil, 2D Codes: 7.5 mil
Reading Ranges - Typical Depth of Field
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
PM8500
5 mils
7.5 to 15.5 cm / 2.9 to 6.1 in
5 mils PDF
8.0 to 18.5 cm / 3.1 to 7.3 in
7.5 mils Data Matrix/QR
8.0 to 16.5 cm / 3.1 to 6.5 in
10 mils
5.5 to 24.5 cm / 2.1 to 9.7 in
10 mils Data Matrix/QR
7.0 to 19.5 cm / 2.7 to 7.7 in
10 mils PDF
4.0 to 25.5 cm / 1.5 to 10.0 in
13 mils
5.0 to 27.0 cm / 1.9 to 10.6 in
20 mils
5.5 to 36.5 cm / 2.1 to 14.4 in
PM8500 HD
3 mils
4.5 to 8.0 cm / 1.7 to 3.1 in
3 mils PDF
5.0 to 8.5 cm / 1.9 to 3.4 in
4 mils Data Matrix/QR
5.1 to 7.6 cm / 2.0 to 3.0 in
5 mils
3.5 to 9.5 cm / 1.3 to 3.8 in
10 mils
4.0 to 12.5 cm / 1.5 to 5.0 in
10 mils Data Matrix/QR
4.0 to 10.5 cm / 1.5 to 4.1 in
10 mils PDF
3.0 to 13.0 cm / 1.1 to 5.2 in
13 mils
5.0 to 14.0 cm / 1.9 to 5.5 in
20 mils
6.0 to 18.5 cm / 2.3 to 7.3 in
PM8500 WA
5 mils
2.5 to 10.0 cm / 1.0 to 3.9 in
5 mils PDF
3.0 to 10.5 cm / 1.2 to 4.1 in
7.5 mils Data Matrix/QR
5.5 to 8.5 cm / 2.1 to 3.4 in
10 mils
2.0 to 16.0 cm / 0.8 to 6.3 in
10 mils Data Matrix/QR
3.2 to 12.5 cm / 1.2 to 4.9 in
10 mils PDF
1.5 to 21.5 cm / 0.6 to 8.4 in
13 mils
1.5 to 26.0 cm / 0.6 to 10.2 in
20 mils
1.5 to 32.0 cm / 0.6 to 12.6 in
Safety & Regulatory
Agency Approvals
The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
Complies to China RoHS
Complies to EU RoHS
Laser Classification
Caution Laser Radiation - Do not stare into beam
CDRH Class II
EN 60825-1 Class 1
IEC 60825-1 Class 2
Utilities
Datalogic Aladdin™
Datalogic Aladdin configuration program is available for download at no charge



판매 및 AS 안내
데이터로직한국총판 ㈜기륭데이타정보
서울 서초구 방배동 853-2 M&L빌딩 T.(02)588-0808 F.(02)3481-0266
www.krdata.co.kr

D8530 Datalogic Powerscan D8530 2차원바코드스캐너

Features

Optics available in Standard Range, High Density and Wide Angle
Datalogic 3GL™ and loud beeper for good read feedback
Datalogic’s instinctive 5-dot aimer
Omnidirectional reading from contact to 30.0 cm /11.8 in reading range
Supports 1D, stacked and 2D codes, postal codes and image captures
Water and Particulate Sealing Rating: IP65
Drop resistance to 2.0 m / 6.5 ft




Decoding Capability
• 1D / Linear Codes
o Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
• 2D Codes
o Aztec Code
o Data Matrix
o MaxiCode
o QR Code
• Postal Codes
o Australian Post
o China Post
o Japanese Post
o KIX Post
o Planet Code
o Postnet
o Royal Mail Code (RM4SCC)
• Stacked Codes
o EAN/JAN Composites
o GS1 DataBar Composites
o GS1 DataBar Expanded Stacked
o GS1 DataBar Stacked
o GS1 DataBar Stacked Omnidirectional
o MicroPDF417
o PDF417
o UPC A/E Composites
Electrical
• Current
o Operating (Typical)
 550 mA @ 5 VDC, 95 mA @ 30 VDC
• Input Voltage
o 5 - 30 VDC
Environmental
• Ambient Light
o 0 - 100,000 lux
• Drop Resistance
o Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
• Humidity (Non-Condensing)
o 0 - 95%
• Particulate and Water Sealing
o IP65
• Temperature
o Operating
 -10 to 55 °C / 14 to 131 °F
o Storage/Transport
 -20 to 70 °C / -4 to 158 °F
Interfaces
• Keyboard Wedge
• RS-232
• USB
Physical Characteristics
• Colors Available
o Yellow/Black
• Dimensions
o 20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in
• Weight
o 295.0 g / 10.4 oz


Reading Performance
• Image Capture
o Graphic Formats
 JPEG, TIFF
• Imager Sensor
o 1280 x 1024
• Light Source
o Aiming
 630 - 680 nm VLD
o Illumination
 LED Array 630 - 670 nm
• Print Contrast Ratio (Minimum)
o 15%
• Reading Angle
o Pitch
 +/- 35°
o Roll (Tilt)
 360°
o Skew (Yaw)
 +/- 40°
• Reading Indicators
o Beepers, Polyphonic
o Datalogic Three Green Lights (3GL™) Good Read Feedback
 Datalogic 'Green Spot' on the Code
 Dual Good Read LEDs
• Resolution (Maximum)
o High Density Model
1D Codes: 2 mil, PDF417: 3 mil, 2D Codes: 4 mil
o Standard Model
1D Codes: 4 mil, PDF417: 4 mil, 2D Codes: 6.6 mil
o Wide Angle Model
1D Codes: 5 mil, PDF417: 5 mil, 2D Codes: 7.5 mil
Reading Ranges - Typical Depth of Field
• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• PD8530
o 5 mils
 7.5 to 15.5 cm / 2.9 to 6.1 in
o 5 mils PDF
 8.0 to 18.5 cm / 3.1 to 7.3 in
o 7.5 mils Data Matrix/QR
 8.0 to 16.5 cm / 3.1 to 6.5 in
o 10 mils
 5.5 to 24.5 cm / 2.1 to 9.7 in
o 10 mils Data Matrix/QR
 7.0 to 19.5 cm / 2.7 to 7.7 in
o 10 mils PDF
 4.0 to 25.5 cm / 1.5 to 10.0 in
o 13 mils
 5.0 to 27.0 cm / 1.9 to 10.6 in
o 20 mils
 5.5 to 36.5 cm / 2.1 to 14.4 in
• PD8530 WA
o 5 mils
 2.5 to 10.0 cm / 1.0 to 3.9 in
o 5 mils PDF
 3.0 to 10.5 cm / 1.2 to 4.1 in
o 7.5 mils Data Matrix/QR
 5.5 to 8.5 cm / 2.1 to 3.4 in
o 10 mils
 2.0 to 16.0 cm / 0.8 to 6.3 in
o 10 mils Data Matrix/QR
 3.2 to 12.5 cm / 1.2 to 4.9 in
o 10 mils PDF
 1.5 to 21.5 cm / 0.6 to 8.4 in
o 13 mils
 1.5 to 26.0 cm / 0.6 to 10.2 in
o 20 mils
 1.5 to 32.0 cm / 0.6 to 12.6 in
• PD8530 HD
o 3 mils
 4.5 to 8.0 cm / 1.7 to 3.1 in
o 3 mils PDF
 5.0 to 8.5 cm / 1.9 to 3.4 in
o 4 mils Data Matrix/QR
 5.1 to 7.6 cm / 2.0 to 3.0 in
o 5 mils
 3.5 to 9.5 cm / 1.3 to 3.8 in
o 10 mils
 4.0 to 12.5 cm / 1.5 to 5.0 in
o 10 mils Data Matrix/QR
 4.0 to 10.5 cm / 1.5 to 4.1 in
o 10 mils PDF
 3.0 to 13.0 cm / 1.1 to 5.2 in
o 13 mils
 5.0 to 14.0 cm / 1.9 to 5.5 in
o 20 mils
 6.0 to 18.5 cm / 2.3 to 7.3 in
Safety & Regulatory
• Agency Approvals
o The product meets necessary safety and regulatory approvals for its intended use.
o The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
o Complies to China RoHS
o Complies to EU RoHS
• Laser Classification
o Caution Laser Radiation - Do not stare into beam
o CDRH Class II
o IEC 60825-1 Class 2
Utilities
• Datalogic Aladdin™
o Datalogic Aladdin configuration program is available for download at no charge
판매 및 AS 안내
데이터로직한국총판 ㈜기륭데이타정보
서울 서초구 방배동 853-2 M&L빌딩 T.(02)588-0808 F.(02)3481-0266
www.krdata.co.kr

DS1100 & DS1500 Datalogic 산업용 고정식 스캐너

INFO
The DS100 embedded bar code reader is an ultra-compact cost-effective laser scanner characterized by very compact dimensions, motor on/off software commands, wide reading width at a short reading distance, lightweight <100>

FEATURES & BENEFITS
• Straight and 90° output window
• 500scan/sec
• 2 input + 2 output
• RS232 + RS485 serial port
• 5Vdc
• Winhost programming tool
• Typical reading range: 50 - 200mm

APPLICATIONS
This product series has been developed to satisfy to requirements of the following reference applications:
• Biomedical analysis machines
• Print & Apply systems
• ATM (Automatic Teller Machines)
• Video rental machines

MODELS
The product series offers the following models:
Ordering Codes Description
939101000 DS1100-1100 ST-RES,RS232 +RS485, LIN,DIR
939101010 DS1100-1101 ST-RES,RS232 +RS485, LIN,90°
939101020 DS1100-1110 ST-RES,RS232 +RS485, R1, DIR
939101030 DS1100-1111 ST-RES,RS232 +RS485, R1, 90°
939101040 DS1100-2100 HI-RES,RS232 +RS485, LIN,DIR
939101050 DS1100-2101 HI-RES,RS232 +RS485, LIN,90°
939101060 DS1100-2110 HI-RES,RS232 +RS485, R1, DIR
939101070 DS1100-2111 HI-RES,RS232 +RS485, R1,90°

ACCESSORIES
The following accessories are available to simplify installation and optimize product performances:
Ordering Codes Description
93A201101 GFC-TC1100 80 DEG.MIRROR
93ACC1670 TC1100 REFERENCE MANUAL+CONFIGURATOR SW
93ACC1780 ADP-015 ADAPTER 25P 10-30VDC
93ACC1771 DS1500 CONF. SW+RF MANUAL DOCS
93A201030 GFC-2200 90° READING DEVICE
93ACC1040 DC5-2200 DC CONVERTER 4-30 VDC TO 5 V

DOWNLOAD
• DS1100 Embedded Bar Code Reader Reference Manual e - Manuals
• ds1100 embeddedbarcodereader datasheet e - Datasheet
• ds1100 embeddedbarcodereader leaflet chemical Biomedical Analysis Machine e - Leaflets



INFO
The combination of extremely compact dimensions and powerful high speed reading capabilities makes the DS1500 scanner ideal for demanding OEM applications. DS1500 miniaturization allows easy integration into OEM equipment and automatic machinery. The high scan rate and sophisticated electronic design effectively suits difficult reading conditions

FEATURES & BENEFITS
• Dimensions: 40 x 30 x 22mm
• Scan Frequency: 800-1200scan/sec
• 1 input + 2 output
• RS232 + RS232 or RS485 serial port
• 5Vdc
• Function Button + LED
• Typical reading range: 50 – 200mm

APPLICATIONS
This product series has been developed to satisfy to requirements of the following reference applications:
• Packaging machines
• Biomedical analysis machines
• Document handling machines
- Electronic Industry
- Print & Apply systems
• ATL (Automated Tape Libraries)

MODELS
The product series offers the following models:
Ordering Codes Description
939201000 DS1500-1100 ST-RES,RS232+RS485,LIN,DIR
939201001 DS1500-2100 HI-RES,RS232+RS485,LIN,DIR

ACCESSORIES
The following accessories are available to simplify installation and optimize product performances:
Ordering Codes Description
93A201101 GFC-TC1100 80 DEG.MIRROR
93ACC1670 TC1100 REFERENCE MANUAL+CONFIGURATOR SW
93ACC1780 ADP-015 ADAPTER 25P 10-30VDC
93ACC1771 DS1500 CONF. SW+RF MANUAL DOCS
93A201030 GFC-2200 90° READING DEVICE
93ACC1040 DC5-2200 DC CONVERTER 4-30 VDC TO 5 V

DOWNLOAD
• ds1500 embeddedbarcodereader datasheet e – Datasheet
• DS1500 Embedded Bar Code Reader Reference Manual e - Manuals

DS6300, DS6400 Datalogic 산업용 고정식 스캐너

DS6300

INFO

The high performance DS6300 industrial laser bar code scanner presents the new Step-a-Head™ feature, new "2-step" optics, reading range from 250 to 2.000 mm, advanced decoder with code reconstruction capability (ACR4), good reading performance on very low contrast bar codes, display and keyboard, new GENIUS™ SW configurator.

FEATURES & BENEFITS

· Selectable focus system

· Avalanche photodiode technology

· 600-1200scan /sec

· 4 input + 3 output

· Built in: Ethernet or Profibus or Devicenet

· Display + Keypad

· ACR4 decoding algorithm

· Typical reading range: 300 - 1400mm

APPLICATIONS

This product series has been developed to satisfy to requirements of the following reference applications:

· Reading on pallets

· Automated warehousing

· Reading on forklift trucks

· Picking systems

· Shop floor applications

MODELS

The product series offers the following models:

Ordering Codes	Description
931351010	DS6300-100-010 2 S.F., LIN, M/S
931351030	DS6300-100-012 2 S. F., LIN, ETH.
931351040	DS6300-100-015 2 S. F., LIN, DNET
931351060	DS6300-105-010 2 S. F, OM, M/S
931351080	DS6300-105-012 2 S. F., OM, ETH.
931351090	DS6300-105-015 2 S. F., OM, DNET
931351020	DS6300-100-011 2 S. F., LIN, PB-DP
931351070	DS6300-105-011 2 S. F., OM, PB-DP

ACCESSORIES

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes	Description
93A051299	BT-6000 TERMINATOR 6K FAMILY
93A051220	CAB-6101 CABLE M.SLAVE NEW 6000 1m
93A051230	CAB-6102 CABLE M.SLAVE NEW 6000 2m
93A051240	CAB-6105 CABLE M.SLAVE NEW 6000 5m
93A051224	CAB-6112 M/S (NO POWER)NEW 6000 2M
93A051225	CAB-6115 M/S (NO POWER)NEW 6000 5M
93ACC1752	CAB-6310 POWER CABLE FAM.6K 10M
93A051351	CAB-S01 STD CABLE TO CBX 1M
93A051352	CAB-S02 STD CABLE TO CBX 2M
93A051353	CAB-S05 STD CABLE TO CBX 5M
93A051354	CAB-S10 STD CABLE TO CBX 10M
93ACC1721	FBK-6000 FAST BRACKETSKIT (2pcs)
93A201100	GFC-60 90° DEGREES MIRROR NEW FAM. 6000
93A201102	GFC-600 90° DEG MIRRORCLOSE DISTANCE
93ACC1730	GFX-60 X-PATTERN MIRROR
93ACC1719	PG6001 SING. UNIT P.SUPP. NEW 6000 (UK)
93ACC1718	PG6002 SING. UNIT P.SUPP. NEW 6000 (US)
93ACC1720	PG6000 SINGLE UNIT POWER SUPPLY NEW 6000

DOWNLOAD

· DS6300 Industrail Bar Code Scanner Quick Guide e - Quick Manuals

· DS6300 Industrial Bar Code Reader Reference Manual e - Manuals

· DS6300 Industrial Bar Code Scanner datasheet e - Datasheet

DS6400

INFO

The high performance DS6400 industrial laser bar code scanner presents the new Step-a-Head™ feature, reading range from 300 to 2.500mm, new FLASH™ dynamic focus, advanced decoder with code reconstruction capability (ACR4), display and keyboard, new GENIUS™SW configurator and PackTrack™ function.

FEATURES & BENEFITS

· Dynamic focus system (FLASH™)

· Avalanche photodiode technology

· 600-1200scan /sec

· 4 input + 3 output

· RS232 + RS485 serial port

· Built in: Ethernet or Profibus or Devicenet

· ACR4 decoding algorithm

· Typical reading range: 500 x 2000mm

APPLICATIONS

This product series has been developed to satisfy to requirements of the following reference applications:

· Automated warehousing

· Reading on forklift trucks

· Shop floor Applications

· Parcel sorting

MODELS

The product series offers the following models:

Ordering Codes	Description
931351093	DS6400-100-010 DYN.F.,M, LINEAR, M/S
931351097	DS6400-100-012 DYN.F.,M, LIN.,ETHERNET
931351099	DS6400-100-015 DYN.F.,M, LIN.,DEVICENET
931351103	DS6400-105-010 DYN.F.,M, OM, M/S
931351107	DS6400-105-012 DYN.F.,M, OM, ETHERNET
931351109	DS6400-105-015 DYN.F.,M, OM, DEVICENET
931351095	DS6400-100-011 DYN.F.,M, LIN.,PROFIBUS
931351105	DS6400-105-011 DYN.F.,M, OM, PROFIBUS

ACCESSORIES

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes	Description
93A051299	BT-6000 TERMINATOR 6K FAMILY
93A051220	CAB-6101 CABLE M.SLAVE NEW 6000 1m
93A051230	CAB-6102 CABLE M.SLAVE NEW 6000 2m
93A051240	CAB-6105 CABLE M.SLAVE NEW 6000 5m
93A051224	CAB-6112 M/S (NO POWER)NEW 6000 2M
93A051225	CAB-6115 M/S (NO POWER)NEW 6000 5M
93ACC1752	CAB-6310 POWER CABLE FAM.6K 10M
93A051351	CAB-S01 STD CABLE TO CBX 1M
93A051352	CAB-S02 STD CABLE TO CBX 2M
93A051353	CAB-S05 STD CABLE TO CBX 5M
93A051354	CAB-S10 STD CABLE TO CBX 10M
93ACC1721	FBK-6000 FAST BRACKETSKIT (2pcs)
93A201100	GFC-60 90° DEGREES MIRROR NEW FAM. 6000
93A201102	GFC-600 90° DEG MIRRORCLOSE DISTANCE
93ACC1719	PG6001 SING. UNIT P.SUPP. NEW 6000 (UK)
93ACC1718	PG6002 SING. UNIT P.SUPP. NEW 6000 (US)
93ACC1720	PG6000 SINGLE UNIT POWER SUPPLY NEW 6000

DOWNLOAD

· DS6400 Industrial Bar Code Scanner datasheet e – Datasheet

· DS6400 Industrial Bar Code Reader Reference Manual e – Manuals

ORDER & AS CENTER

KDI CO.,LTD (주)기륭데이타정보

T.(02)588 0808 F.(02)3481 0266
